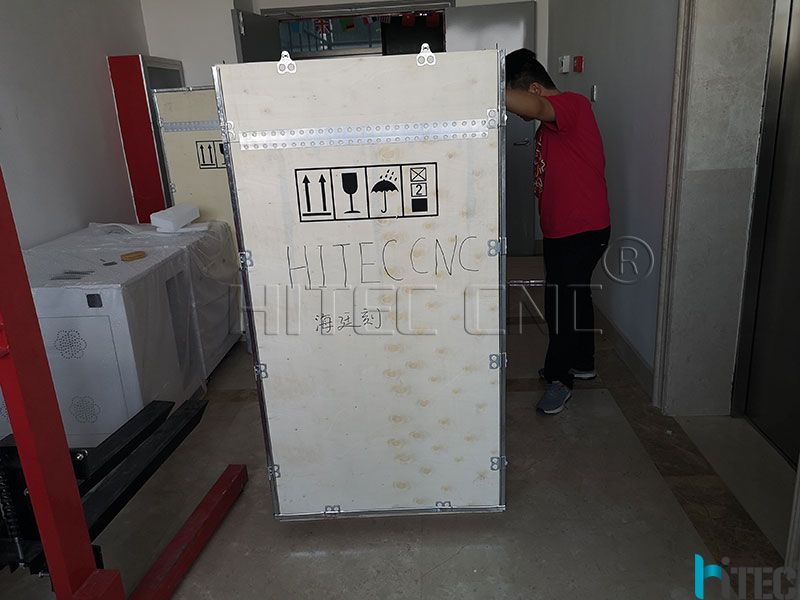

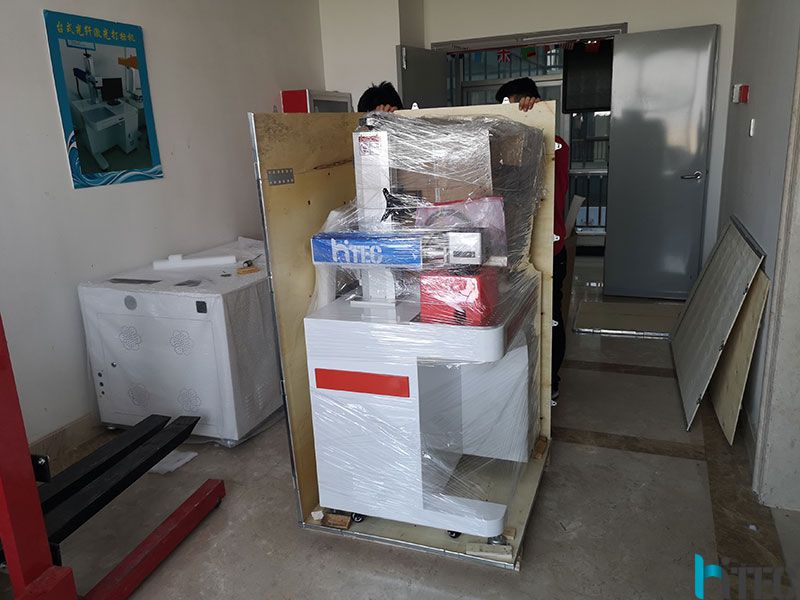

Raycus 30W fiber laser marking machine ready shipping to USA
2018-09-28 21:41:34
www.hiteccnc.com
Raycus 30W fiber laser marking machine ready shipping to USA My customer buy it for a car parts making company,mainly marking on stainless steel.
Application for fiber laser marking machine
Permanently mark or etch smooth or uneven metals including firearms, tools, parts, jewelry, PVC & Acrylics，ceramics, LEDs, metals, plastics and rubber.

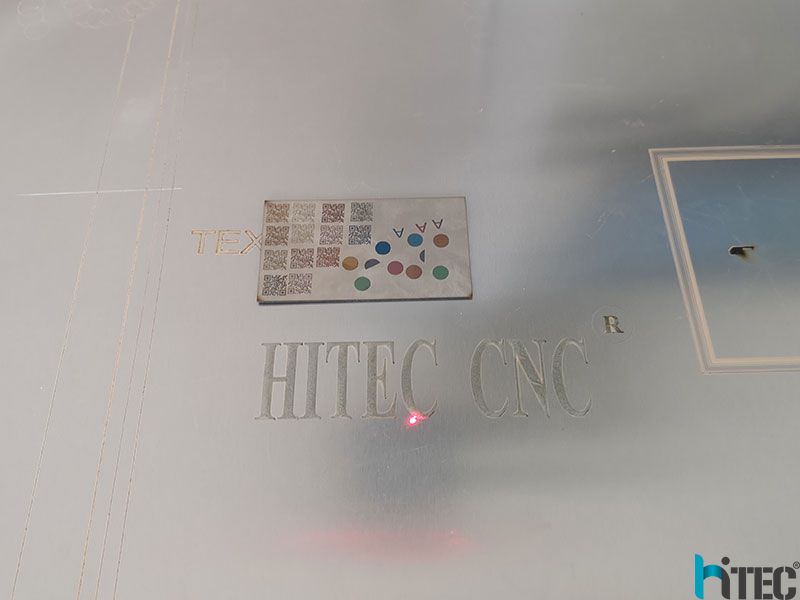

Samples

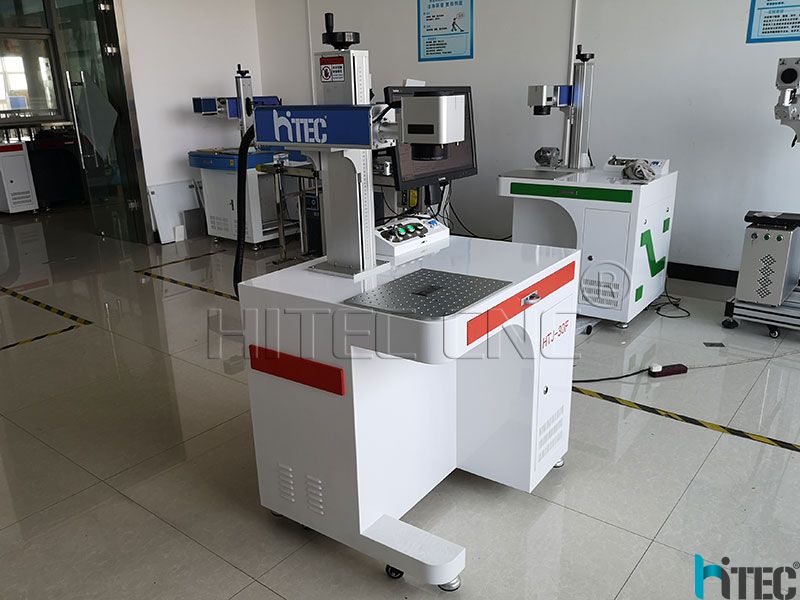

Features of Hitec HTJ-30F Fiber laser marking machine
(1) Fiber Laser Source: 20W 30W 50W 60W (optional)
Max, JPT Or IPG fiber laser source is available according to customer’s request.
Perfect laser beam and long life time up to 100,000 hours.
(2) Digital Galvanometer Scanner System
High speed imported laser scanner system, marking the speed up to 8,000mm/s.
(3) PC Display Holder
Z axis can be adjusted up to 700mm high, which is specially suitable for marking/printing thick and high materials.
(4) Control Switch
Including emergence stop, key switch, power switch, etc, convenient to identify, easy to operate.
(5) Lifting System
Shake hand wheel, laser focus distance can be adjusted easily. Operation is simple and convenient.
(6) Red Light Pointer
Red Light Pointer showing the marking area before laser marking.
(7) Laser MarkingSoftware
EZCAD marking software, powerful editing function, easy to use, can mark QR, serials no., different logo. Support DXF, PLT format graphs files. With detailed English user manual for every step introduction.
(8) F-theta Scan Lens
Singapore Ronar-Smith F-theta lens.
The image field height is almost directly proportional to the scan angle.
Typically, the Linearity F-theta distortion is kept less than 1% without software correction to ensure minimal distortion.
High trans-missive AR coating is coated onto the lens elements surface to ensure minimal power loss and hence increase the throughput.
