China ATC Cnc Router machines best price

China atc cnc router machines best price for wood furniture are best sellers with its high performance and affordable CNC Router that’s easy to use and easy to maintain Available in popular table sizes including HTM1325C (4’ x 8’), HTM1530C ( 5’x 10’ ), HTM2030C ( 7’x 10’ ), HTM2040C (7’ x 13’ ) and customized working size

MODEL: HTM1530LC
BRAND: HITEC
VIEWS:
CATEGORY: Atc Cnc Router

China ATC Cnc Router machines best price

china atc cnc router price

Applicatoin of the china atc cnc router machines
1. Furniture industry:wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments,etc;

2. Advertisement: Carving and cutting various labels and number plate,gifts and souvenirs.

3. Arts and Crafts: Carving characters of any languages and graphics on gifts and souvenirs.

4. Any kinds of wood,Aluminum board, plastic, density board, wave board, PVC, acrylic, and other nonmetal materials,etc.

Features of atc cnc router machines
1.Linear ATC CNC Router suitable for routing,drilling,cutting,edge chamfering,etc.
2. Precision: Excellent Spare parts,accurate precision detection instrument,which make sure the machine with perfect location and working precision.
3. High-speed: Adopt reducer direct design,high torque, high-energy, Y axis dual motor drive, runs smoothly with high efficiency.
4. Table: Double-layer compound grade board table design,rugged construction,non-deformation,with functions of instant adsorption and release.
5. Tool magazine: With an 8-slots Linear tool changer,tool changes to be performed quickly.


Parameters

Brand

HITEC CNC

Table  Size

1500*3200mm

Working  area

1500× 3000× 200mm

Spindle  Power

Italy  HSD 9kw air  cooling Spindle 24000rpm  (ES951)

ATC  Tools

 8 pcs ISO30-ER32 tool holders with round type or linear type

Tool diameter

1/8 1/2 4 6 16 20

Tools change time

 8 sceonds

Calibraion

Auto

VFD

Taiwan Detla 11kw VFD inverter

Motor  Driver

Japan  Yaskawa 850w Servo  Motor  and  Driver

MachineStructure

Heavy T frame  Square  Tube  Structure

Transmission

XY  Hign  Accuracy  Gear  Rack,   Z TBI  3210 ball  Screw

XYZ  Rails

Hwiin  30mm  linear   Rails (HGR30)

Mechanical  Accuracy

< 0.05/300mm

Working   Speed

35000mm/Minute

Table

Bakelite Vacuum  T slot   Table

Vacuum  Pump

Germany Becker KVT 3.140 (China dry pump optional)

Dust collector

 3kw with 2bags

Data  Transmission

 USB

Control system

Synetc 6MB PCI  control system  Process 2000-3000bytes one second

Software

Artcam 2008,Type3, Alpa cam 2013(optional)

Working  Voltage

AC220V/50HZ  OR  380V/50HZ

Machine main parts space

1600*3200mm

Control cabinet size

1600*900*500mm

Net  Weight

2400kg

Price Range

$1,2000$-$2,4000

Details parts of our liner atc cnc router

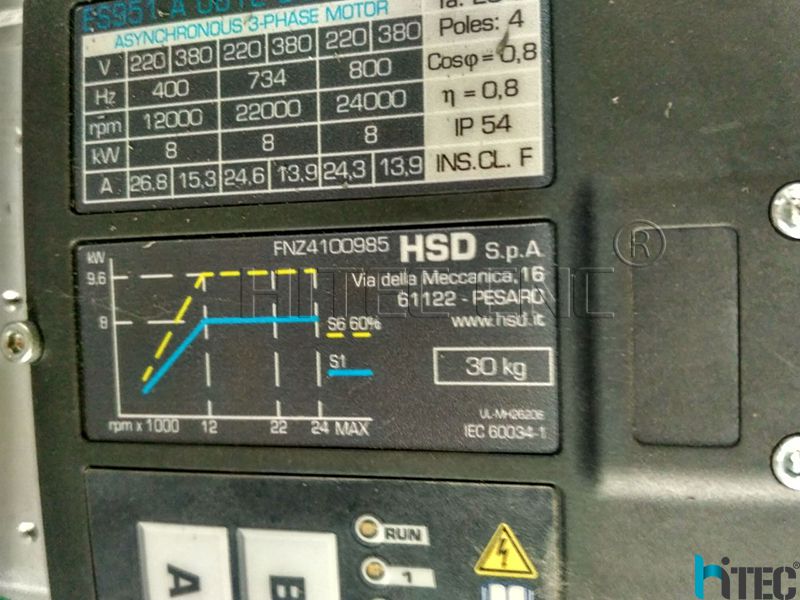

1.Origional Italy HSD 9KW Air cooling spindle (Rotating speed 24000rpm  Model: ES951)

Italy HSD spindle for atc cnc router

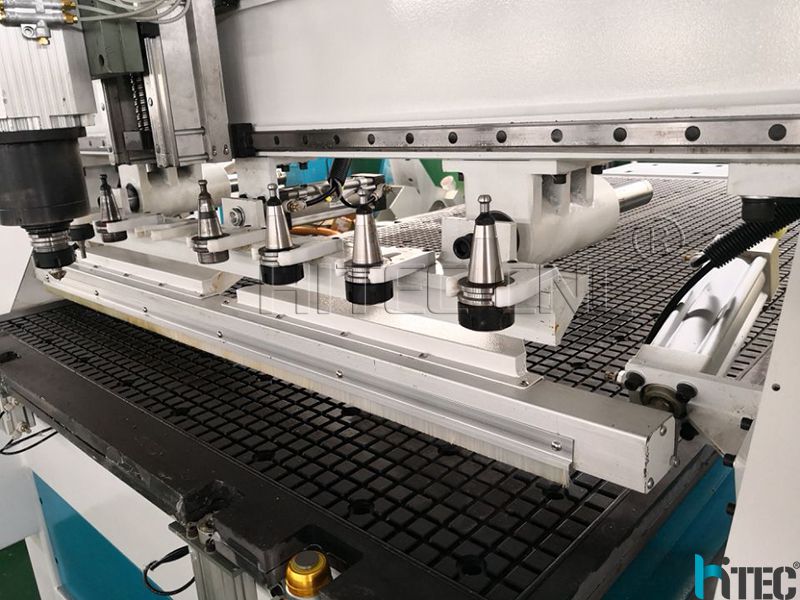

2.Liner atc types (you also can choose the carrousel auto tools changer types)
l1325 liner atc cnc router

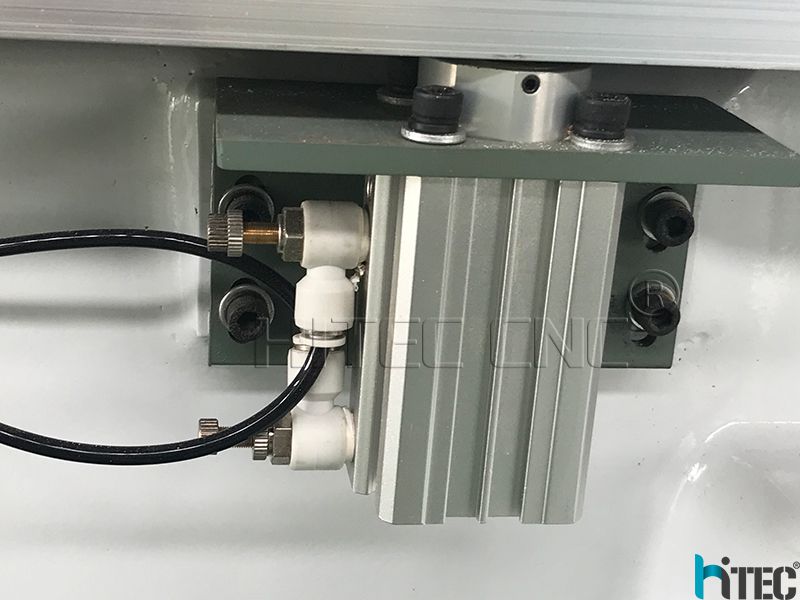

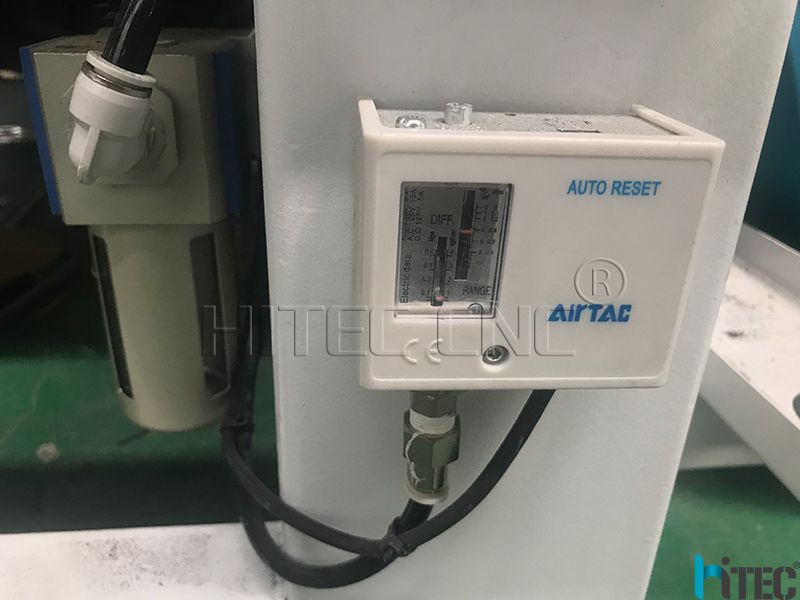

3.Taiwan Airtac The installation technology(Picture). We use Taiwan Airtac cylinders.The concept of the design is easy installation,easy testing,easy replacement and easy to adjust the Parallelism and perpendicularity of the cylinders.
atc cnc router partstaiwan Airtac cnc parts

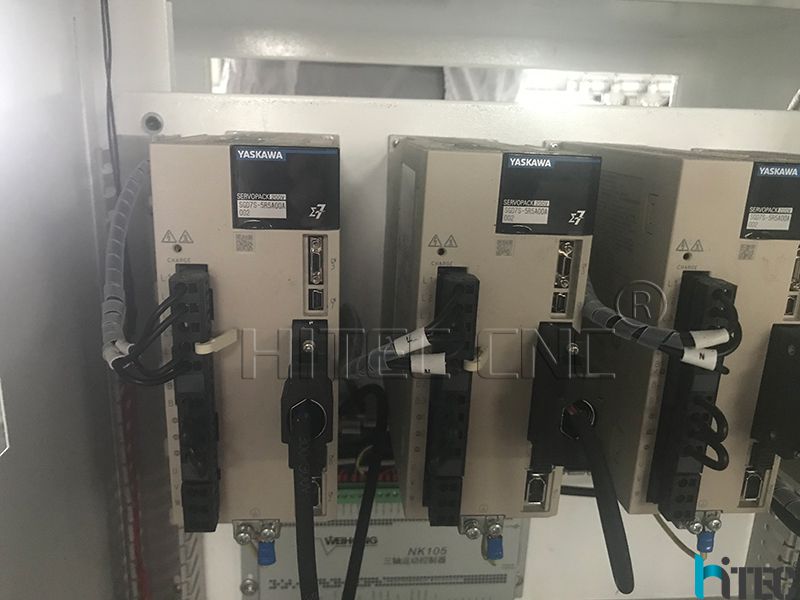

4.Japan Yaskawa servo motor and drivers
Japan Yaskawa Servo Motor

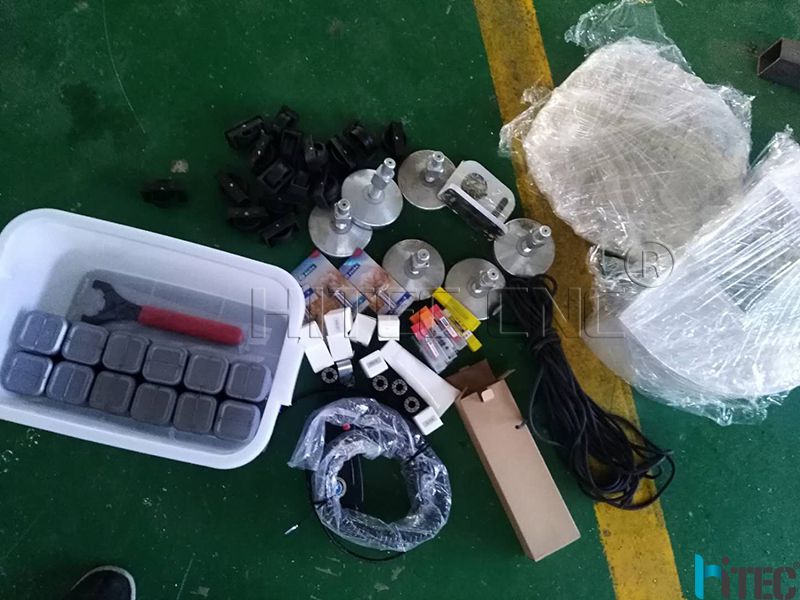

5. china atc cnc router machines shipping parts inclued
1325 atc cnc router


Samples for atc cnc router machines
wood cutter cnc routers

wood cabinet door cnc routercnc router samples

Machine delivery time:
7-10 Working days can be delivery,before delivery we will take details picture and video to customer

Machine Other details pictures
liner atc cnc router for sale
After sales service
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.


FAQ
According to your requirement,we will recommend the best suitable machine for you:
1.What is your max size of your wood or other material to process?
It deicide machine working area.

2.What is main material to process  ?
It deicide spinlde,motor and ohter parts choice.

3.You also can send your product samples picture  to us.
