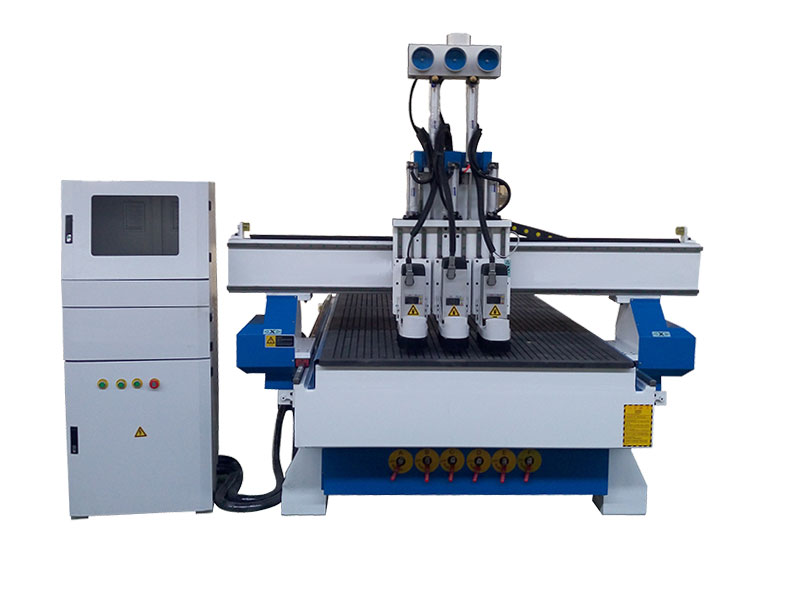

Three heads atc cnc router for cabinet door process

Three heads atc cnc router for cabinet door making hot sale in market now This machine with 3pcs air cooling spindle, pneumatic tool changer ,high quality and high efficiency。Equal to atc cnc router machine

MODEL: HTM1325-3S
BRAND: HITEC
VIEWS:
CATEGORY: CNC Wood Router

Three heads atc cnc router for cabinet door process
three process cnc router machine

Friendly reminder
This machine most suitable for the whole process need 2-3pcs tools,and different tools for different design.For caring and cutting,if you need over 4pcs tools,pls choose out other hot sale
atc cnc router machine.

Three heads atc cnc router Application

Woodworking:
furniture, musical instruments, manufacturing, wooden handicrafts, art model, art font characters, logos, flat plate engraving, wood furniture, art murals, MDF paint doors, composite doors, windows and doors cupboard, bedside cabinets, wall relief sculpture cutting, decorations processing, gift wrap, wave board, countertopappliances, sporting goods, industrial products and other wooden surfaces and three-dimensional shape cutting.

Mold industry:
can engrave all kinds of mold, wood mold, matrix, aviation wooden mold, propeller, building models, sand table model, model boats, automotive foam mold.

Advertising industry:
acrylic, color plate, PVC, ABS board, aluminum, aluminum panels carved
V-shaped groove cut, color portrait, three-dimensional billboards, all kinds of signs, badges,seat plate,copper, font, fonts, each class logos, trademarks and so on.

Processing Material:
MDF, solid wood panels, plywood, plywood, planed boards, cork, native wood, PVC, gypsum, color plate, aluminum plate, hibiscus board, plexiglass, acrylic, ABS, Vatican special stone, sandstone , marble, granite,all kinds of artificial stone, light boxes, light guide, horn, metal, all kinds of hard plastic and so on.


Features
a)  Three pieces spindles can work one by one automatically, so this Machine can finish three different work on one board without changing tools by hands.
b)  It with heavy-duty machine structure,welded by 8mm thickness steel square tube,so that it can ensures minimum distortion, excellent rigidity and powerful strength.
c)  Position materials by 5 pcs position cylinder to improve the working efficiency.
d)  Dust collection system collect the dust when the economic auto tool changer CNC router working in time.
5)  Protection device to protect the wire and one emergency switch on each later plate


Parameters

Brand HITEC CNC®
X,Y,Z working area 1300x2500x200mm
X,Y,Z Traveling positioning accuracy  ±0.03/300mm
X,Y,Z Repositioning positioning accuracy ±0.03mm
Lathe bed frame Steel square tubes
X,Y Structure Rack and pinion,
Taiwan HIWIN guide rails 20mm
Z Structure  Ball screw  2510
Taiwan HIWIN guide rails 20mm
Drive motors Leadshine servo motor and drivers
Table surface vacuum table 6,8,10 zone
Fixing method vacuum
Max power comsumption  (without spindle)2.0KW
Max rapid travel rate 30000mm/min
Max working speed  20000mm/min
Spindle air-cooling
Spindle power  4.5KW
Spindle speed  6000-24000RPM
Working voltage AC220V/50/60Hz(option 380V)
Command language G Code
Operatiing system  NC studio control system
Computer interface  USB
Collet  ER20(3.175/4/6/8/10/12.7mm)
X,Y Resolution <0.02mm
Software compatiliby Type3/Artcam/Artcut/Ucancam/Alphacam
Running environment temperature  0-45 centigrade
Relative humidity  30%-75%
 Price Range 5,000$-8,000$

Three heads cnc router details parts

The machine body (10mm heavy duty,speacial design for stable)
Lathe bed is welded with thick channel steels and square tubes,processed by high temperature tempering treatment and vibrating stress relief(VSR) ;Ensure excellent stability,not easy to be deformed.

three duty frame

Three air cooling spindles,one 4.5kw for cutting materials ,two 3.0kw for carving design

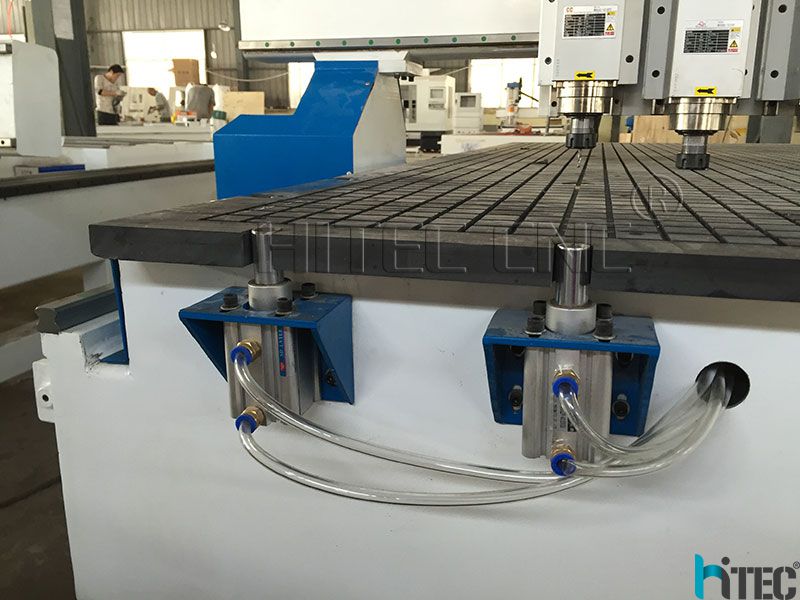

Positioning cylinder Make sure even small materials,also can fixing material very well,also same times,doing the same working area doors,no need Re-find the origin,just put the mdf sheet on the table).
Positioning cylinder


Leadshine servo motor and drivers


Dust collect

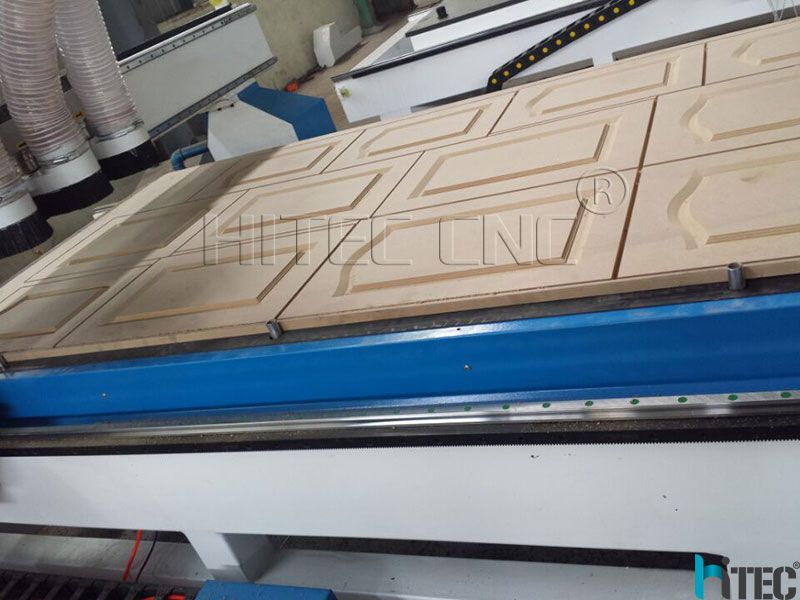

Three heads atc cnc router for cabinet door process samples


cnc router for woodworking
HITEC CNC® After Sales Service
1.24 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary.


T/T , Western Union, LC. Trade Assurance support
