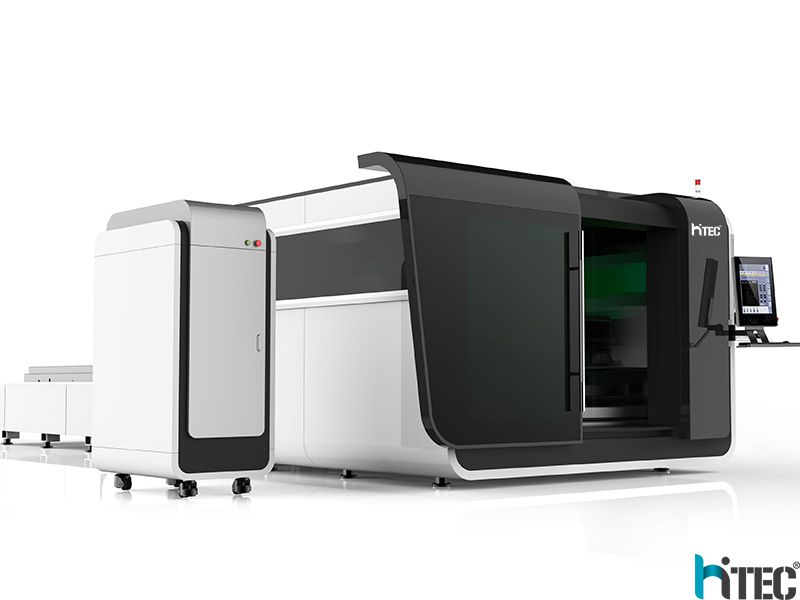

HTF3015GA enclosed design cnc metal fiber laser cutter machine for sale with affordable price

HTF3015GA enclosed design cnc metal laser cutter machine for sale with affordable price, HTF3015GA enclosed design fiber laser cutting machine for sale with affordable price

MODEL: HTF3015GA
BRAND: HITEC
VIEWS:

HTF3015GA enclosed design cnc metal fiber laser cutter machine for sale with affordable price
laser cutter usa
3015GA full enclosed fiber laser cutterlaser metal cutter cost
Features for cnc metal laser cutter

► Stable and reliable light path system and control system.
► Imported original fiber laser generator with great and stable performance to ensure the lifespan over 100,000 hours.
► High cutting quality and efficiency with smooth cutting edge.The cutting speed up to 60m/min.
► Full protection cover to ensure the operator safety and reduce the factory air pollution.
► Dual and exchange work table to save uploading time.
► The dual gear and driver system to ensure high work precision.Imported guide rail and ball screw to guarantee machine stable work process.

Technology Parameters

Brand HITECCNC
Model HTF3015GA
Total Weight 7000kg
Dimension 8850*2850*2310mm
Laser power available 500W-10000w
Working area for metal sheet 3000*1500mm
Y-axis stroke 3000mm
X-axis stroke 1500mm
Z-axis stroke 120mm
X/Y axis position accuracy ±0.03mm
X/Y axis reposition accuracy ±0.02mm
Max. Moving speed 120m/min
Maximum acceleration 1.5G
Max. Working capacity of sheet table 600kg
Specified voltage and frequency 380V/50Hz/60Hz/60A
Continuous working time 24h
Price Range $30000-$48000

Cnc Metal Cutter Application Industry
Fiber laser specially cutting middle thick and thin materials such as stainless steel, mild steel/carbon steel, copper, alloy steel, spring steel, galvanized plate,etc.
Applicable fields: aviation, aerospace, electronics, appliances, subway accessories, automobile, machinery, precision parts ,ships, saw blades, elevators, craft gifts, decoration, advertising...

Cnc metal laser cutter machine application
High power full protection cnc metal laser cutter machine widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metal Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

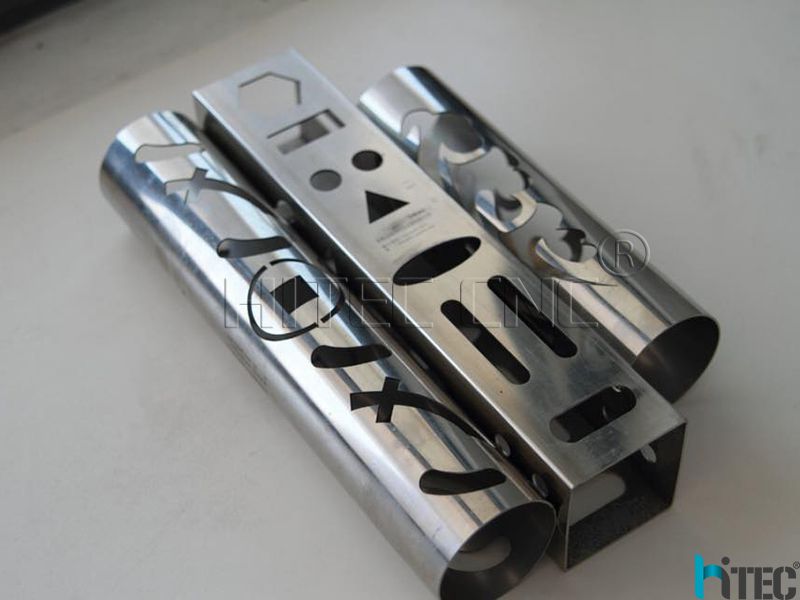

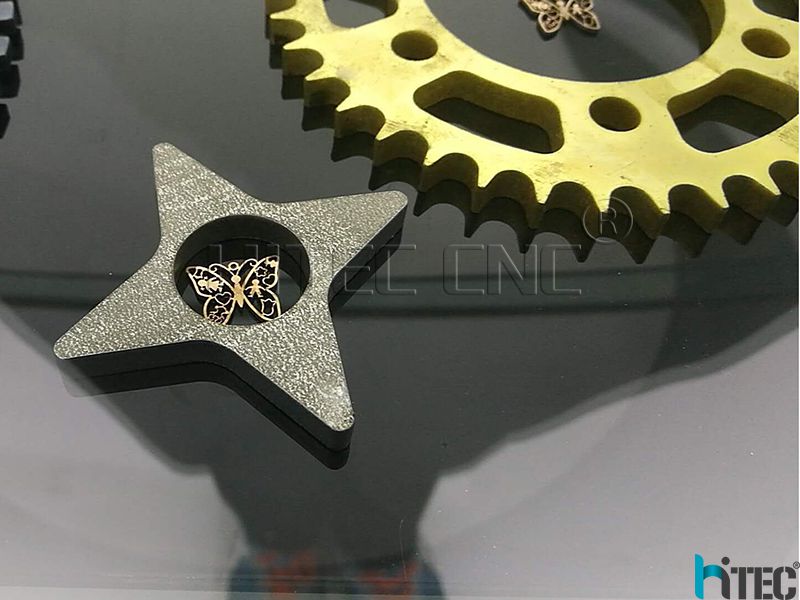

Samples Made By Hitec Cnc metal laser cutter machine
fiber laser cutting machine
cnc metal laser cutter

aluminum cutting fiber laser cutting machinemetal cutter
Advantage
♦ It adopts an up and down exchange platform;
♦ The converter is responsible for controlling
the exchanging motor;

♦ The machine is able to finish the platform
exchanging within 15s.


♦ The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
♦ High strength, stability, tensile strength, ensuring 20 years of use without distortion;
Thickness of rectangular pipe wall is 10mm and weights 4500 kg.


Details Parts
Exchange platform

Affordable price Laser Cutting with Medium Power Fiber Lasers Machine is equipped with an exchanged double working platform. While working on one table, the other platform can load and unload the sheet workpiece.

fiber laser cutter machine metal parts cutting

Protective cover
The Full cover Dual-plate fiber laser cutters for metal tubes / pipes has the characteristics of strict structure, reasonable, no noise, large stroke, fast movement and long service life. The appearance will be more beautiful, and the effect is to avoid the damage caused by the metal dust at the end of the processing.

Professinal Raytools brand

Swiss RAYTOOLS produced fiber cutting head that suitable for medium and high power industrial applications launched in 2017. And it did comprehensive optimization in dustproof design and customer experience. The risk of contamination of the collimating mirror is extremely high when the fiber is inserted and removed. The laser head adds an upper protective mirror to the collimating assembly, minimizing the risk of contamination of the collimating mirror. At the same time, the structure of the protective mirror is also fully upgraded, and a dustproof cover is added to the protective mirror. The double-layer protection design greatly enhances the user's experience in replacing the protective lens, and the risk of contamination of the lens is almost zero.
1000w fiber laser cutting machine

IPG Laser Generator from Germany
IPG Laser cutter machine


Other Famous Parts
fiber laser cutter machine partsfiber laser cutter 1kw

Gas requirement to use

Gas Type Pressure Purity
O2 1MPA 99.9%
N2 2.5MPA 99.9%
Remark: The purity of gas can be below 99.9% above 95%. The higher purity is, the better cutting quality will be.

Working Temperature
The Best Working Temperature 10-35℃
 ≤0℃:Pour ethyl alcohol into the water chiller not more than 1/4 of the chiller’s volume

Hitec After Sales Service
1. We supply 3 years warranty for the whole machine,and offer lifelong repair,We have a strong after-sale service team,once the machine has any fault,our after-sale technician will help the users to solve the problems in the first time.
2. With the change of the weather temperature,we'll remind the users  to protect the laser surce and the cooling-water machine from the cold,and offfer the solutions.
3. We'll visit our users regularly,and ask about the machine use effect,guarranty the users products production yield.
4. Engineers are avaliable to service the machinery overseas.

Package Machines
laser machine package

How we guarantee hitec fiber laser cutting machine quality and precision?
cnc metal cutter

Questions Before Sent Details
1.  Whats the materials and thickness you want to process?
2.  Whats your industry you are in?

3.  Whats the working volotage you use in your factory?

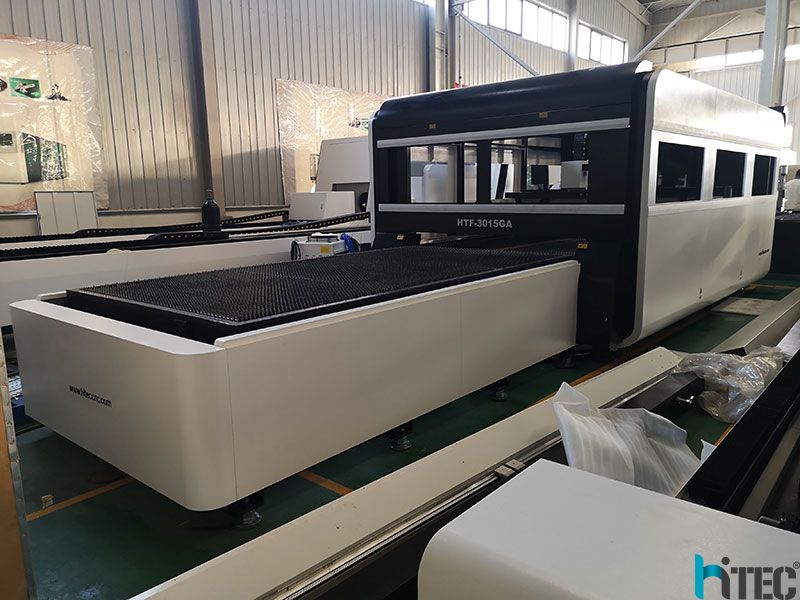

Machine Details Show
fiber laser cutter
