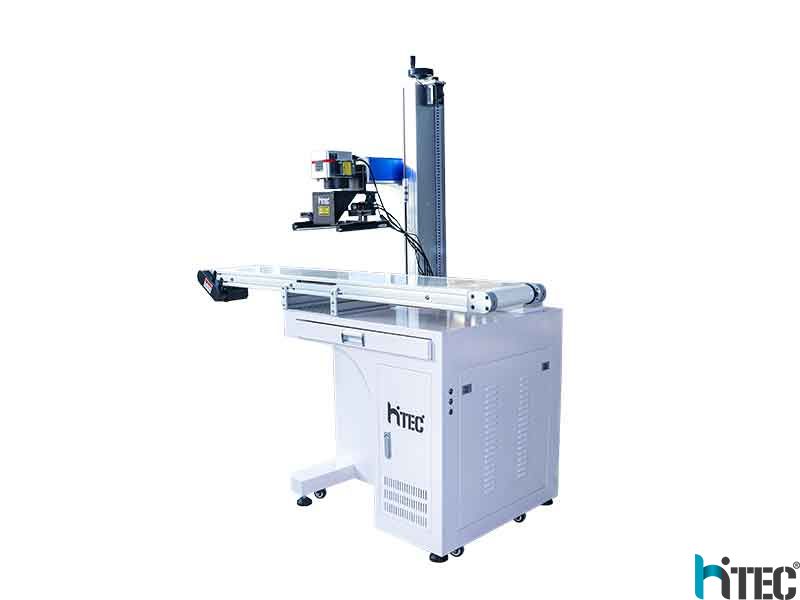

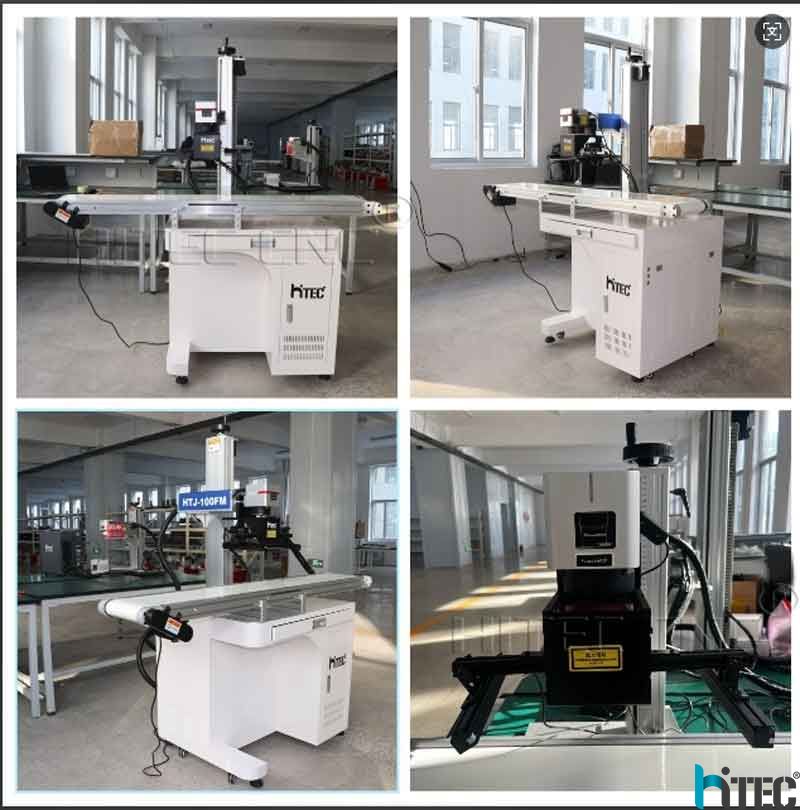

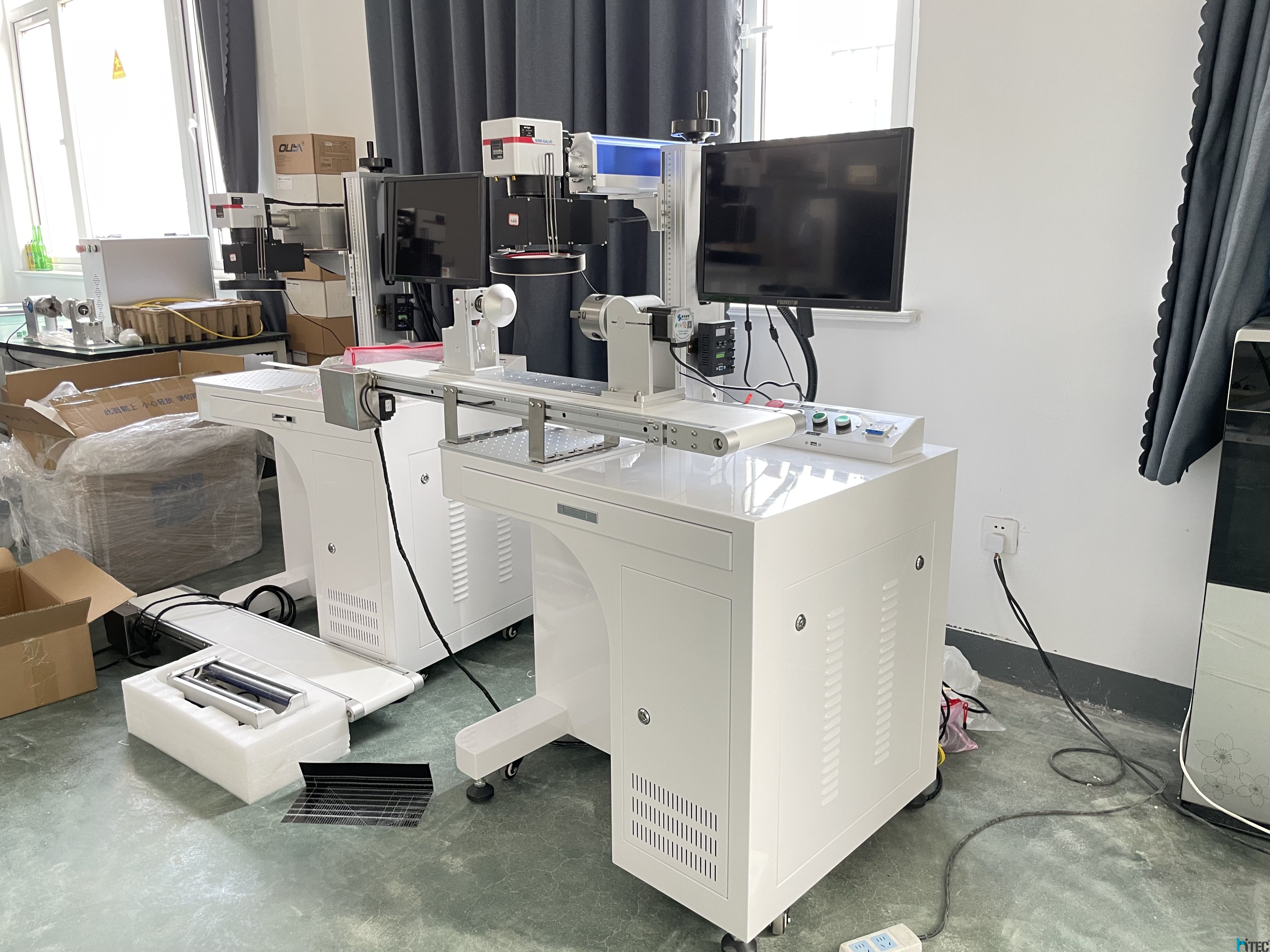

CCD auto visual position system Fiber laser marking machine
Advantage of CCD camera
CCDs are the most frequently used image detectors as they have many advantages, including larger dynamic range, good quantum efficiency, low noise, linear response, and negligible geometrical distortion. CCD cameras are extensively used because of their low-light image capturing ability.
Parameters
Fiber laser marking machine
Item
Core parameters
Core parameters
Engraving area
Applicable materials
Laser Power
1
110x110mm
Metal
Plastic
30W 50W 60W 80W 100W
2
200x200mm
3
300x300mm
Related name
camera laser marking machine, CCD camera fiber laser marking machine, jewelry fiber laser marking machine, JPT fiber laser marking machine,
4
Marking Depth
≤1mm
5
Marking Speed
7000mm/s
6
Minimum Line Width
0.015mm
7
Repeated Precision
±0.003mm
8
Controller (Software--EzCad)
JCZ from China
9
Beam Quality
M2 <1.6
10
Focus Spot Diameter
<0.01mm
11
System Operation Environment
Windows XP / Windows 7 / Windows 8
12
Cooling Mode
Air cooling
13
Temperature of Operation Environment
15℃~35℃
14
Voltage
220V/110V 50/60HZ
15
Package Size
460x770x780mm
16
N.W/G.W
55/60KG
17
Optional
Rotary Device, Moving Table, 2d cutting table

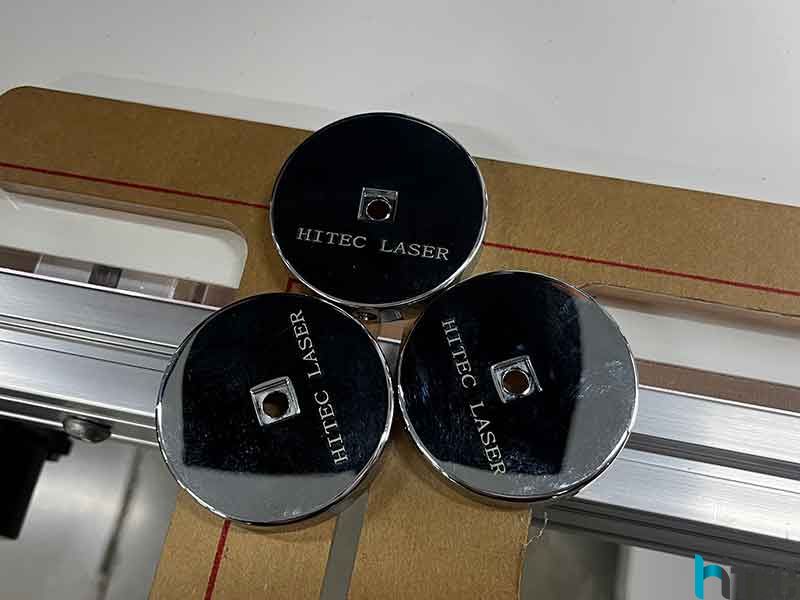

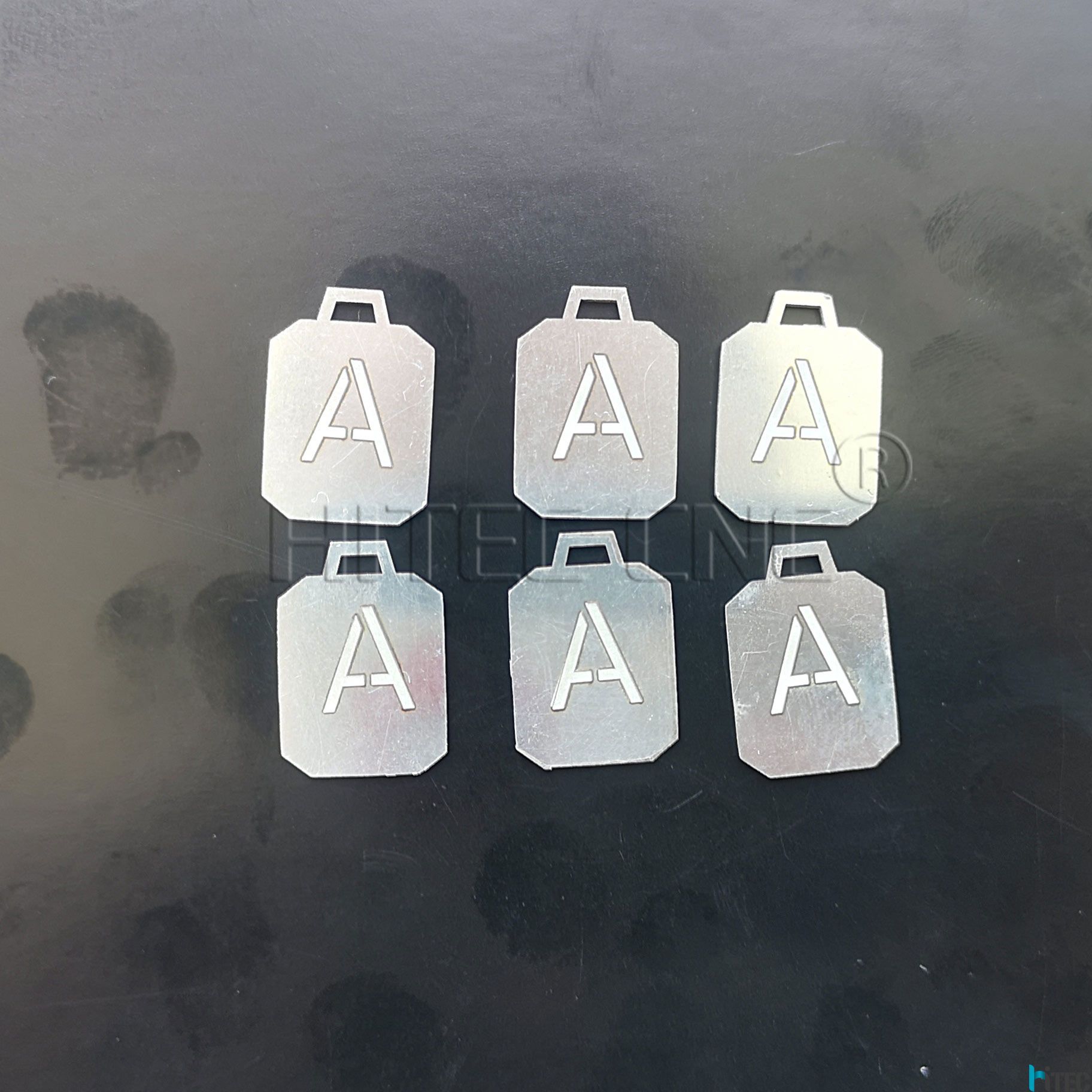

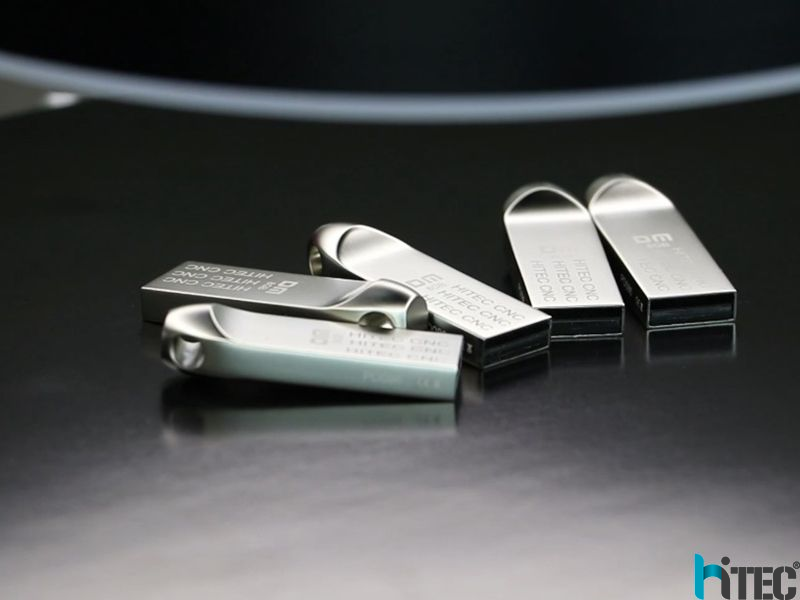

Samples of CCD auto visual position system Fiber laser marking machine
