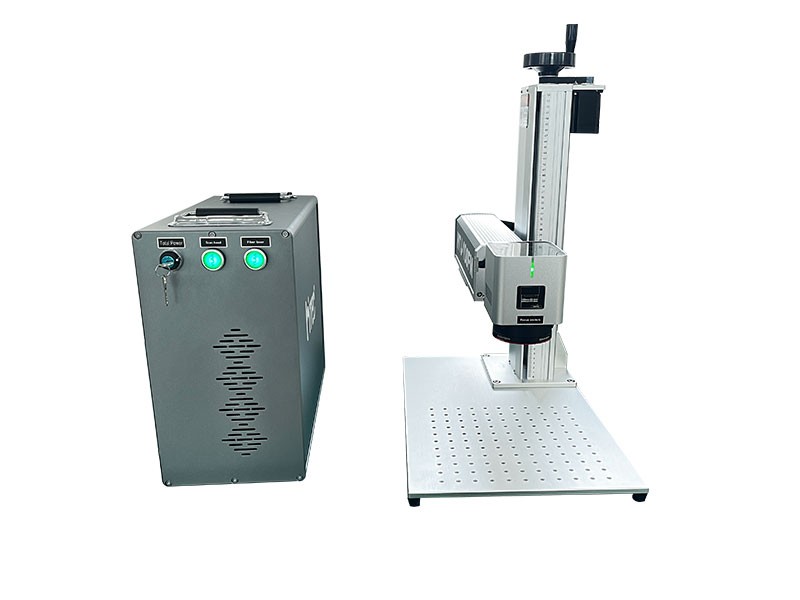

Handheld Mini Portable 20w 30w Fiber Laser Marking Machine
Technical Parameters of Handheld Marking Machine
|
Fiber laser marking machine |
|||
|
Item |
Core parameters |
Configurable parameters |
|
|
Engraving area |
Applicable materials |
Power |
|
|
1 |
75mm*75mm |
Metal |
20w |
|
Related name |
laser marking machine,fiber laser marking machine,metal fiber laser marking machine,enclosed fiber laser marking machine,laser marking machine 30w |
||
|
2 |
Marking Depth |
≤1mm |
|
|
3 |
Marking Speed |
12000m/s |
|
|
4 |
Minimum Line Width |
0.015mm |
|
|
5 |
Repeated Precision |
±0.003mm |
|
|
6 |
Controller(Software--EzCad) |
Shenyang Baichuang |
|
|
7 |
Beam Quality |
M2 <1.6 |
|
|
8 |
Focus Spot Diameter |
<0.01mm |
|
|
9 |
System Operation Environment |
Windows XP / Windows 7 / Windows 8 / Windows 10 / Windows 11 |
|
|
10 |
Cooling Mode |
Air cooling--Bullt-in |
|
|
11 |
Temperature of Operation Environment |
15℃~35℃ |
|
|
12 |
Voltage |
220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
|
|
13 |
Power Requirement |
<500W |
|
|
14 |
Package Size |
470mm*400mm*360mm |
|
|
15 |
Gross Weight |
10KG |
|
|
16 |
Net Weight |
8.25KG |
|
|
17 |
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automatic Matching System |
|
Tag: Handheld fiber laser marking machine Mini portable machine 20w 30w handheld machine
