Handheld Mini Portable 20w 30w Fiber Laser Marking Machine
Handheld Mini Portable Fiber Laser Marking Machine Application
Portable handheld laser marking machine is an optical, electrical and computer integrated equipment integrating laser, optics, machinery, electronics and computer technology. It uses a high-energy laser beam to irradiate the surface of the workpiece, so that the dirt, rust and coating on the surface evaporate or peel off instantly, thereby realizing the crystallization process. The use of optical fiber as a medium for transmitting high-power laser light exhibits superior performance.
It can be widely used in large-scale equipment manufacturing industries such as railway tracks, tires, train manufacturing, aircraft manufacturing, hydroelectric generators, wind power generators, steam turbines, engines, large bearings, shipbuilding, and large molds. In short, the handheld laser marking machine can process parts flexibly.
Handheld Mini Portable Fiber Laser Marking Machine Adantage
1. Its main features are compact and convenient, and can be operated manually. The portable laser marking machine can laser mark large mechanical parts in any direction. Solve the problem of laser marking existing large parts.
2. Advanced hardware control technology and intelligent software.
3. High pump efficiency, can significantly enhance the output beam quality.
4. Greatly save electricity at work, save operating cost.
Cooling air cooling way, size is small.
5. Adapt to bad working environment. To dust, shock, shock, humidity, temperature, has the very high tolerance.
6. Powerful software: the WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP and other software output file.
7. Support the PLT, DXF, AI, DST, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF files, such as support for automatic code, serial number, batch number, date, bar code and qr code marking.
Technical Parameters of Handheld Marking Machine
|
Fiber laser marking machine |
|||
|
Item |
Core parameters |
Configurable parameters |
|
|
Engraving area |
Applicable materials |
Power |
|
|
1 |
75mm*75mm |
Metal |
20w |
|
Related name |
laser marking machine,fiber laser marking machine,metal fiber laser marking machine,enclosed fiber laser marking machine,laser marking machine 30w |
||
|
2 |
Marking Depth |
≤1mm |
|
|
3 |
Marking Speed |
12000m/s |
|
|
4 |
Minimum Line Width |
0.015mm |
|
|
5 |
Repeated Precision |
±0.003mm |
|
|
6 |
Controller(Software--EzCad) |
Shenyang Baichuang |
|
|
7 |
Beam Quality |
M2 <1.6 |
|
|
8 |
Focus Spot Diameter |
<0.01mm |
|
|
9 |
System Operation Environment |
Windows XP / Windows 7 / Windows 8 / Windows 10 / Windows 11 |
|
|
10 |
Cooling Mode |
Air cooling--Bullt-in |
|
|
11 |
Temperature of Operation Environment |
15℃~35℃ |
|
|
12 |
Voltage |
220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
|
|
13 |
Power Requirement |
<500W |
|
|
14 |
Package Size |
470mm*400mm*360mm |
|
|
15 |
Gross Weight |
10KG |
|
|
16 |
Net Weight |
8.25KG |
|
|
17 |
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automatic Matching System |
|
Detailed Parts

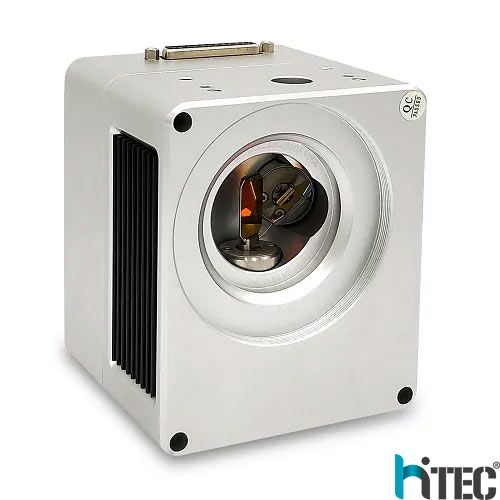

Shenzhen zhibo-tech Galvanometer ZB2D10C1064

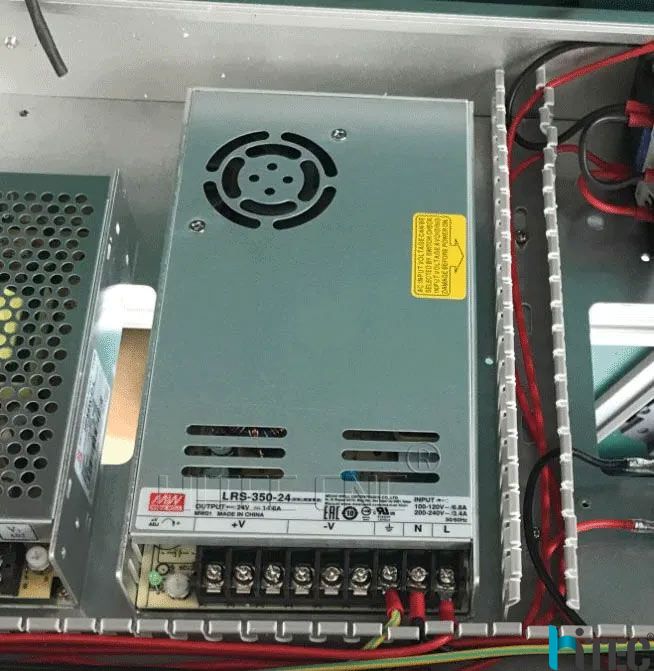

Taiwan MW Famous brand, Stable performance with long lifespan

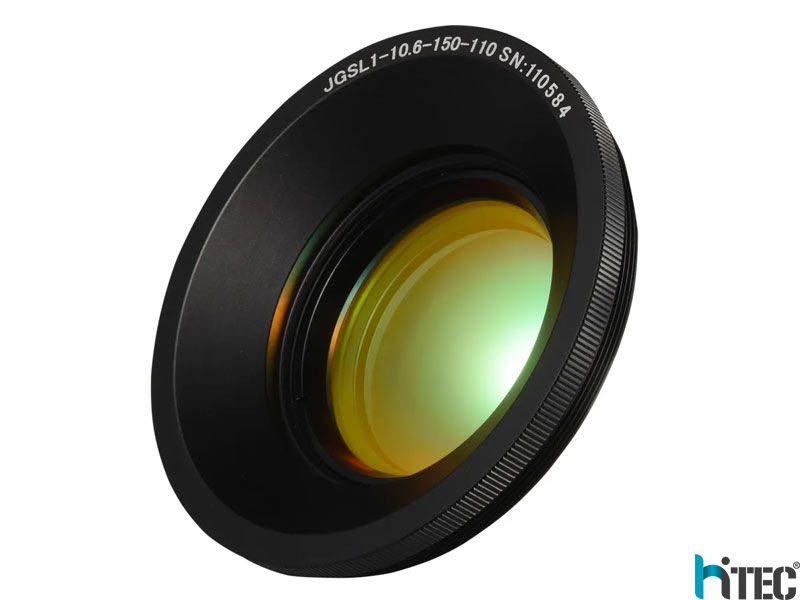

Shenzhen JGZ Field mirror JGZL1-1064-160-110

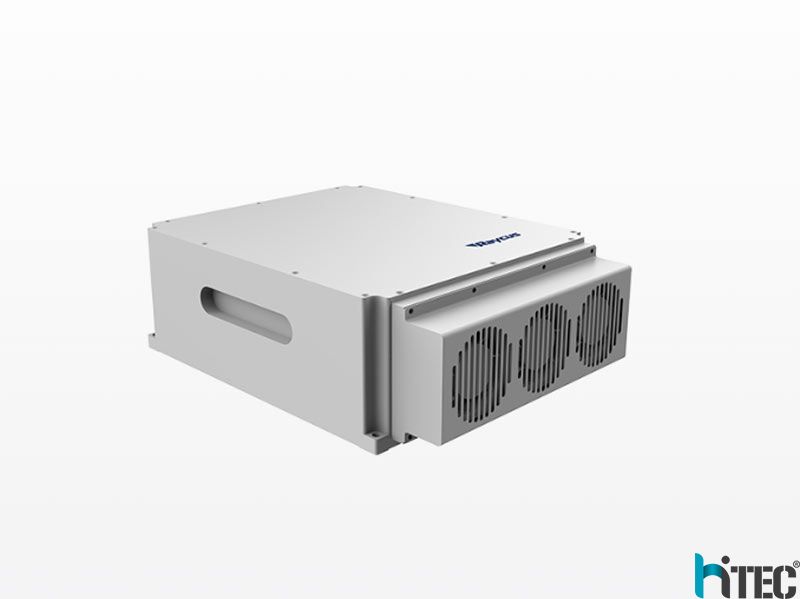

Raycus 20w 30w Famous brand

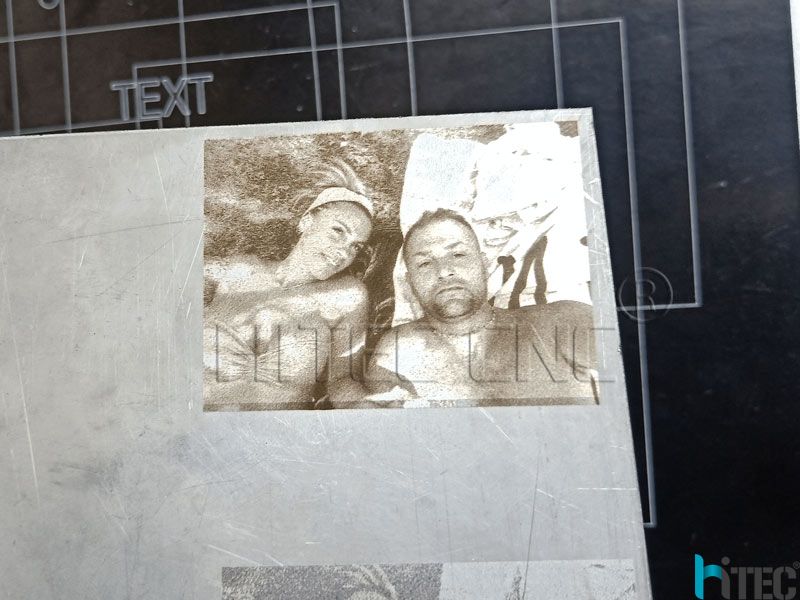

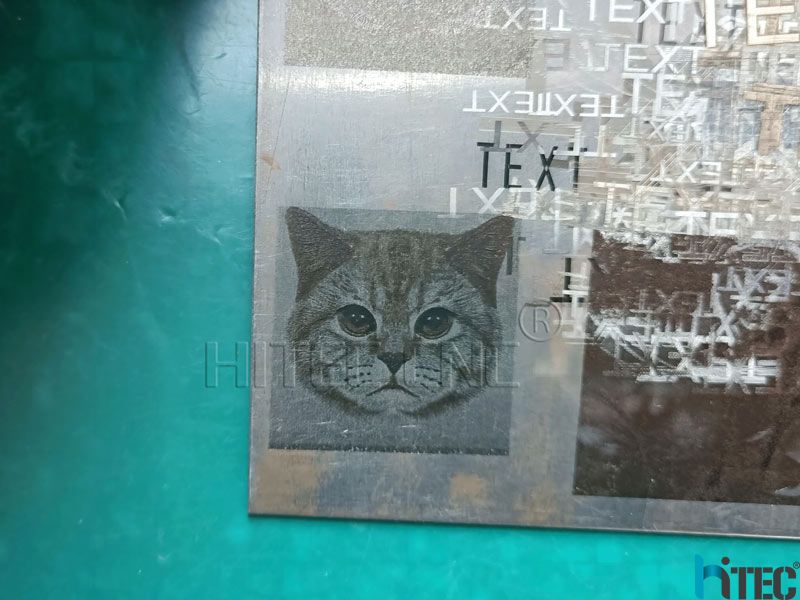

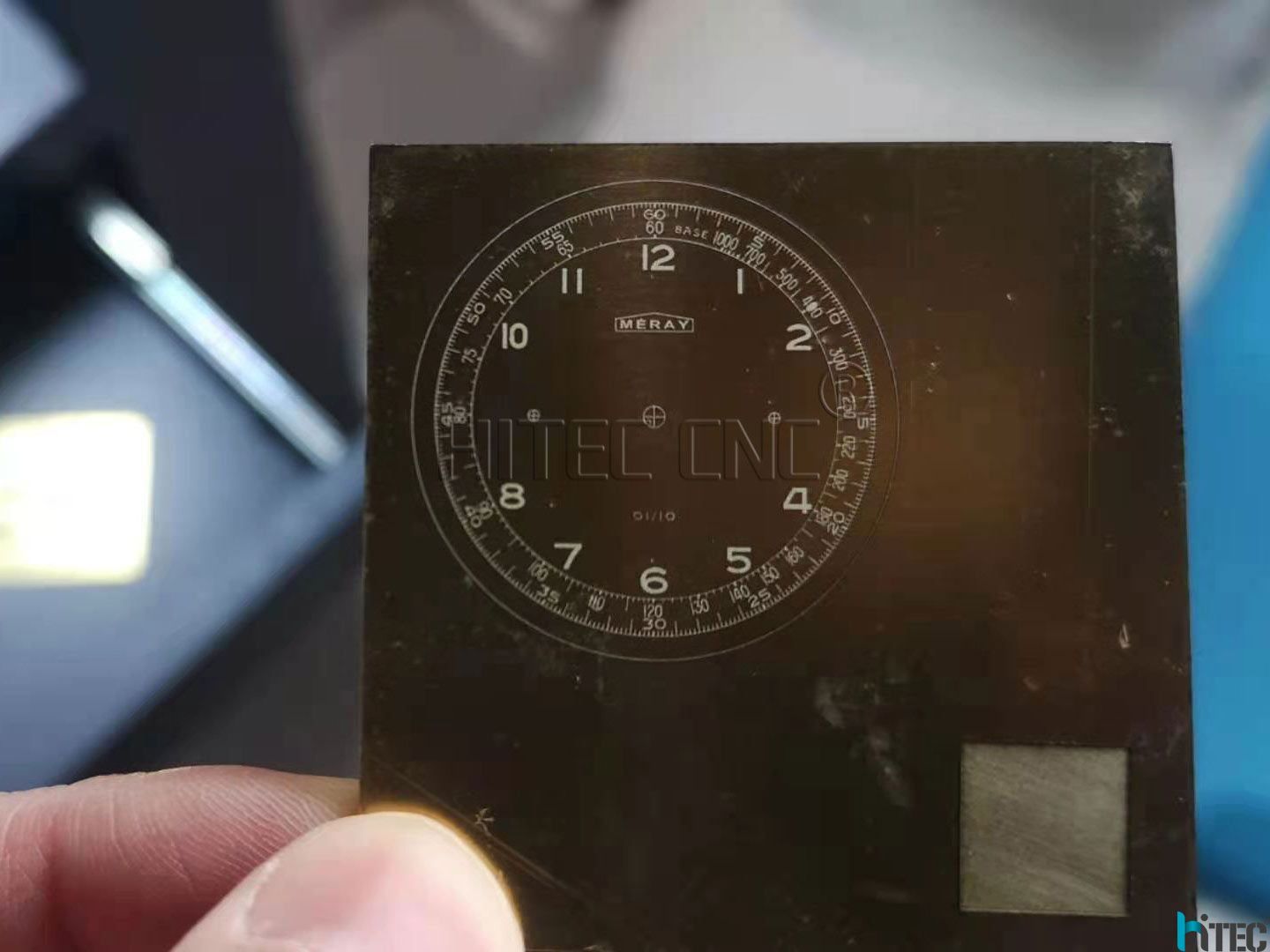

Sampls By Handheld Marking Machine
