5W 10w UV Laser Marking Engraver for Glass, Plastic, Metal, Wood
UV laser marking machine is also called UV laser engraving machine, which has high beam quality and small spot, and the processing of heat affected area is small, which can be used for ultra-fine marking, special material marking. UV laser marking machine is suitable for processing more extensive materials, such as plastics, including PP (polypropylene), PC (polycarbonate), PE (polyethylene), ABS, PA, PMMA, silicon, glass and ceramics.
UV Laser Marking Machine Features
Perfect marking quality: 355nm output wavelength to reduce the thermal impact on the workpiece, high-precision galvanometer marking head can ensure fine and repeatable marking, high-precision fine spot to ensure the perfect marking results, The marking process is non-contact, the marking effect is permanent.
UV laser engraver machine has a large marking range.
Heat affected area is very small, there will be no thermal effect, the material is not deformed and charred.
High speed and high efficiency.
Machine performance is stable, small size, low power consumption.
The UV laser engraving machine is suitable for heat radiation reaction of large materials processing, if it’s used for the production line with the automatic loading and unloading, it can realize automatic access to materials. It’s suitable for the vast majority of metal and non-metallic materials on the marking industry.
What A UV laser Marking Machine can do?
Parameters
| Laser Power | 3W/5W/10W |
| Laser Wavelength | 355nm |
| Laser repetition frequency | 20-200Khz |
| Marking Area | 110*110mm |
| Maximum Range | 175*175 200*200mm 300*300mm |
| Marking Speed | 8000mm/S |
| Engraving depth | 0.01mm-1mm(lt depends on the material) |
| Minimum line width | 0.01mm |
| Minimum character | 0.15mm |
| Repeat accuracy | +0.001mm |
| Demand for electricity | 110V/60HZ220V/50HZ |
| Power consumption | 1500W |
| Cooling way | Water-cooling |
10W JPT Laser Source

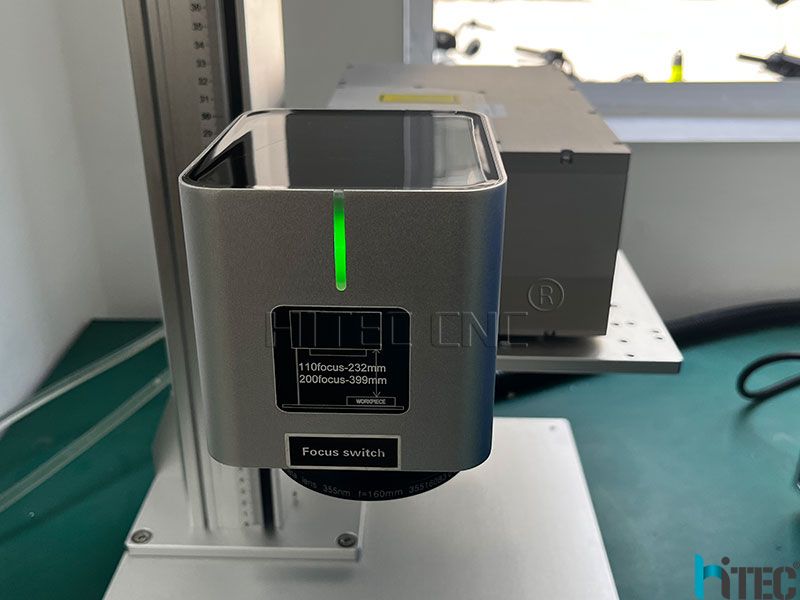

OUYA M102 laser head
Wooden Package
