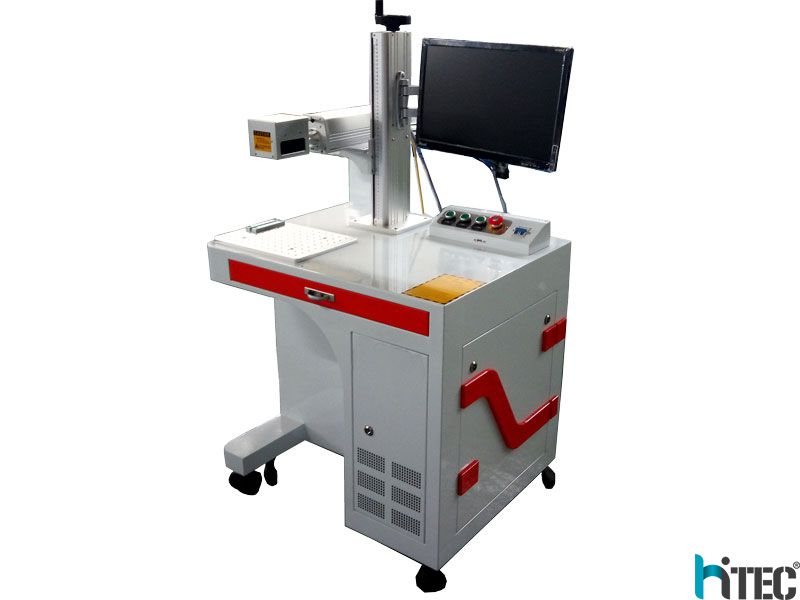

fiber laser marking machine price
Industrial fiber laser marking machine Application:
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
Mechanical Parts: Bearing, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc
Advantage of the fiber laser marking machine
| 1) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect. |
| 2) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products. |
| 3) No Consumables: One Fiber marker can work for more than 10 years without any consumables. |
| 4) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products. |
| 5) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path. |
| 7) Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental. |
| 8) Original JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions. |
| 9) High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid. |
| 10) Long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs) |
| 11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc.. |
| 12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance. |
| 13) Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect. |
Technical Parameters
| Brand | HITEC CNC |
| Power | 20W / 30W/50W |
| Laser Wavelength | 1064nm |
| Marking Area | 200mm*200mm 300*300mm |
| Optional Marking Area | 50mm*50mm / 100mm*100mm / 200mm*200mm / 300mm*300mm |
| Marking Depth | ≤1mm |
| Marking Speed | 7000mm/s |
| Minimum Line Width | 0.015mm |
| Minimum Character | 0.2mm |
| Repeated Precision | ±0.003mm |
| Controller (Software--EzCad) | JCZ from China |
| Life-span of Fiber Laser Module | 100 000-200 000 hours |
| Beam Quality | M2 <1.6 |
| Focus Spot Diameter | <0.01mm |
| Power Stability (8h) | <±1.5%rms |
| System Operation Environment | Windows XP / Windows 7 / Windows 8 |
| Cooling Mode | Air cooling--Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Voltage | 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH |
| Power Requirement | <500W |
| Computer Requested | There will be one PC with the machine |
| Dimension (L*W*H) | 550mm*740mm*1350mm |
| Package Size | 850mm*850mm*1500mm |
| Net Weight | 130KG |
| Gross Weight | 180KG |
| Price Range | $2,800-$3,800 |

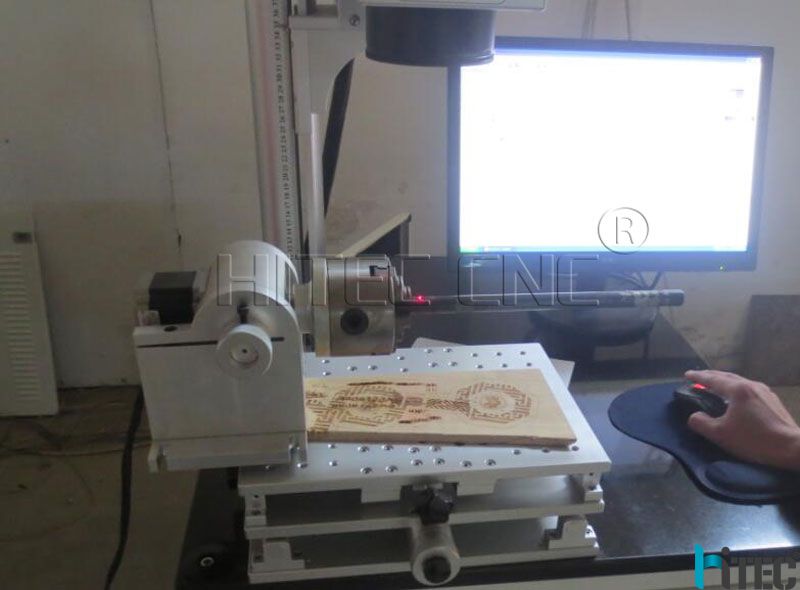

Samples of the fiber laser marking machine

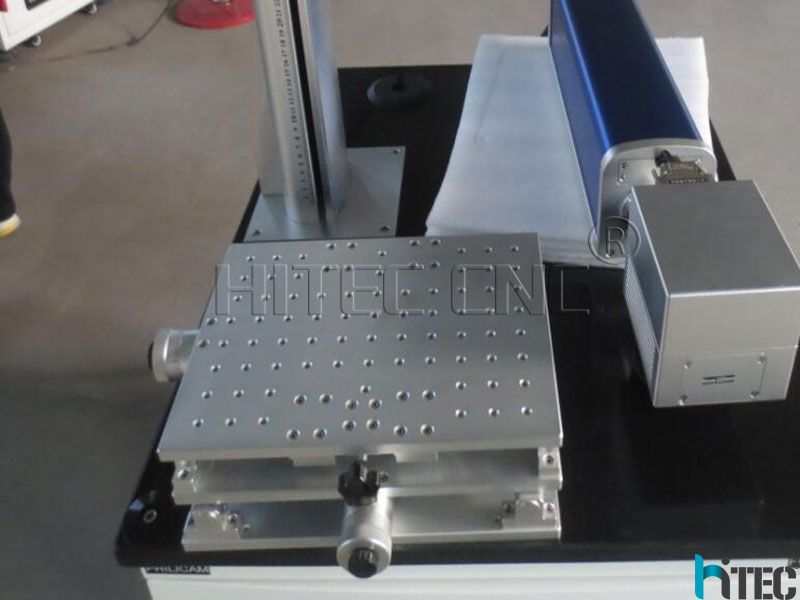

Parts of fiber laser marking machine

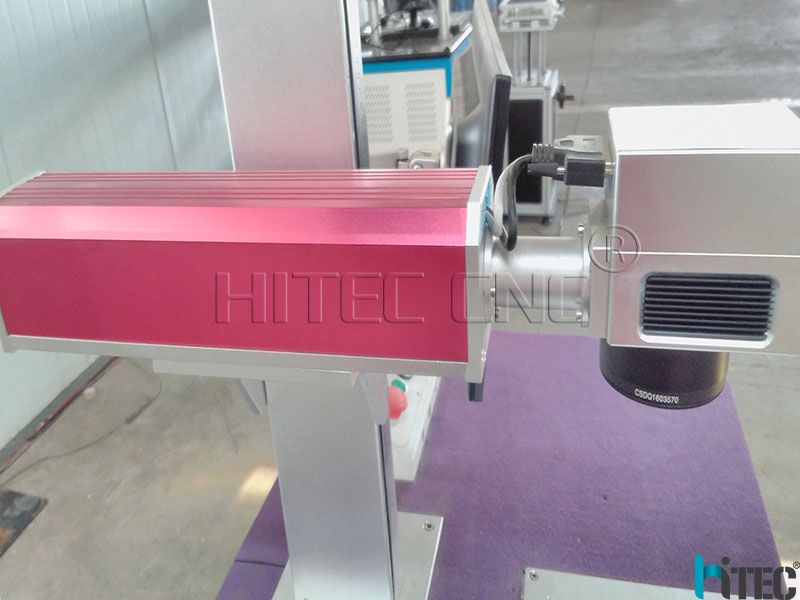

1)High quality laser heads

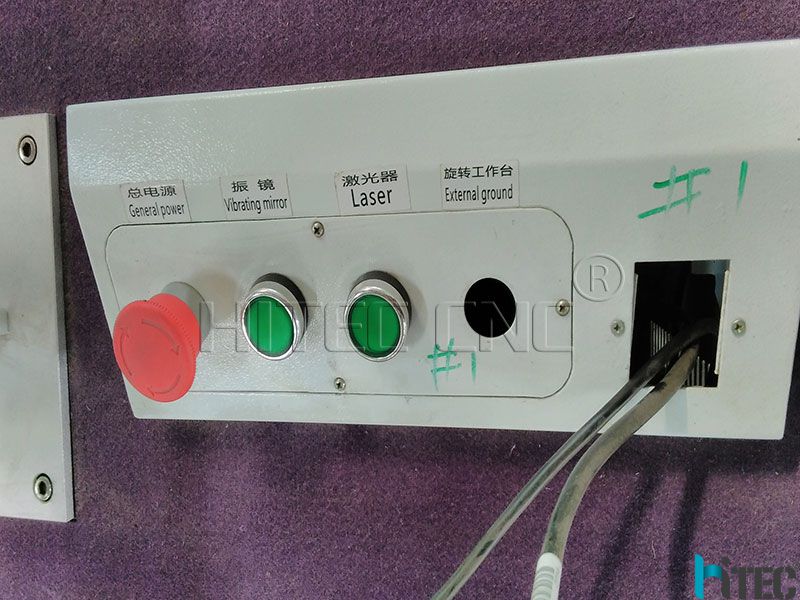

2)Laser power switch

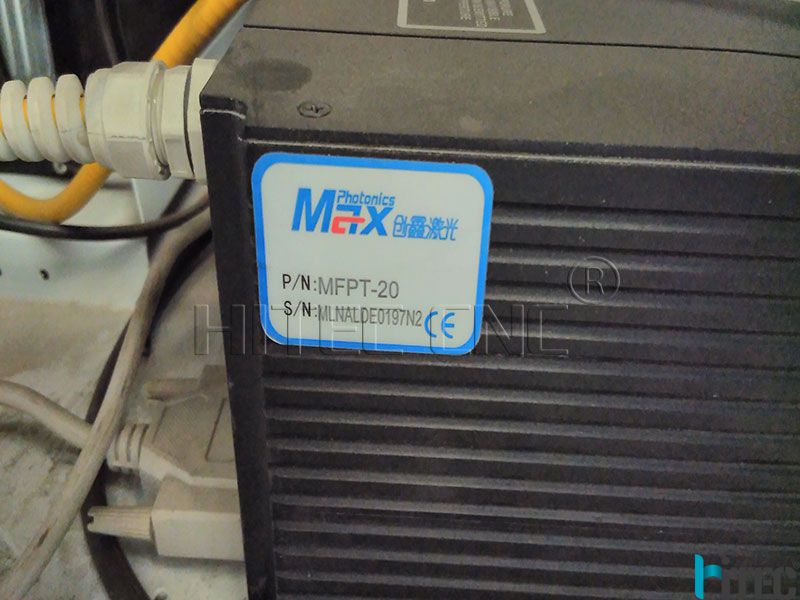

3)Raycus laser generator 20w,high quality long life time 100000hours
4)Control Box
Guarantee and after sales
* Machine has been adjusted before delivery.
* English software, user manual and detailed installation & training Videos DVD
* Warranty period: 18 months for complete machine (excluding the consumables), 3 months for laser tube and lens. Optional long lifetime laser tube: 10,0000 hours.
*Machine spare parts and repair service is offered in lifetime.
* Free training is offered in the plant and free samples are available.
* 24 hours technical support by e-mail, calling or door-to-door service.
* Professional laser machine supplier with 10 years experiences.
* International quality certificate: CE, ISO9001,FDA
Packaging&shipping
1) Wood case or as per required.
2) The delivery lead time would be 5-7 days against down payment.
3) As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
We support making customer design,weclome to sent to us your samples :)
